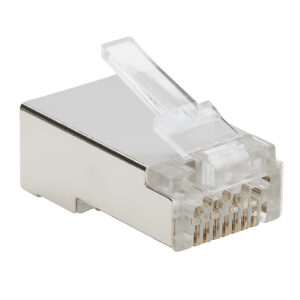

Cat6 RJ45 FTP Modular Plug

Description：

Zitocom®   Cat6 RJ45 FTP Modular Plug make it easy to terminate solid or stranded conductor Cat6 cable in your data or voice Ethernet application. The RJ45 FTP (Foiled Twisted Pair) plugs work with most RJ45 crimping tools (except AMP) and custom-length 24–26 AWG FTP and F/UTP Cat6 cabling at up to 6.2 mm jacket diameter.

Features

  • Designed for 8-position 8-conductor, solid wires, round line cord entry.
  • Ideal for customization of cords for voice or data applications.
  • Accepts 28-24 AWG solid wires.
  • Used with crimping tools.
  • UL Recognized.

Specifications

Electrical:

Current/Voltage Rating: 1.5 AMPS/ 30 VAC 42 VDC

Dielectric Withstanding Voltage: 1000 Volts RMS, 1 min (60 Hz)

Insulation Resistance: 5000 ohms min

Termination Resistance: 35 milliohms max after environmental testing

Material and Finish:

Housing: PC, UL 94V-2

Color: Clear

Contact: Phosphor Bronze, Gold plating over 100 microinch Nickel

Gold Plating: 1.27 micron/50 micro inch min.
